Advanced power monitoring with modular communication flexibility
Elite 500 is a high-precision multi-function panel meter designed for applications that demand advanced power monitoring, wide communication compatibility, and easy third-party system integration.
In modern electrical systems, metering devices are often expected to do much more than display basic parameters. They need to support continuous monitoring, communicate with multiple automation platforms, and adapt easily to changing site requirements without increasing integration effort. Elite 500 is built to serve exactly this role.
It combines advanced power monitoring with data logging, control IOs, and modular communication protocols for smooth integration with BMS, SCADA, process industrial controls, and other third-party systems. Depending on the application, users can choose conventional CT or Rogowski coil input, both of which can connect directly to the meter without an additional integrator.
combines high-precision monitoring, graphical visibility, and modular communication to support a wide range of automation and energy monitoring applications.
Class 0.2S / 0.5S active energy accuracy and 0.5S reactive measurement provide high-precision monitoring for energy transfer and reconciliation.
Modular communication supports Modbus, Profinet, BACnet, and IEC 61850, enabling integration with SCADA, BMS, process controls, and other systems.

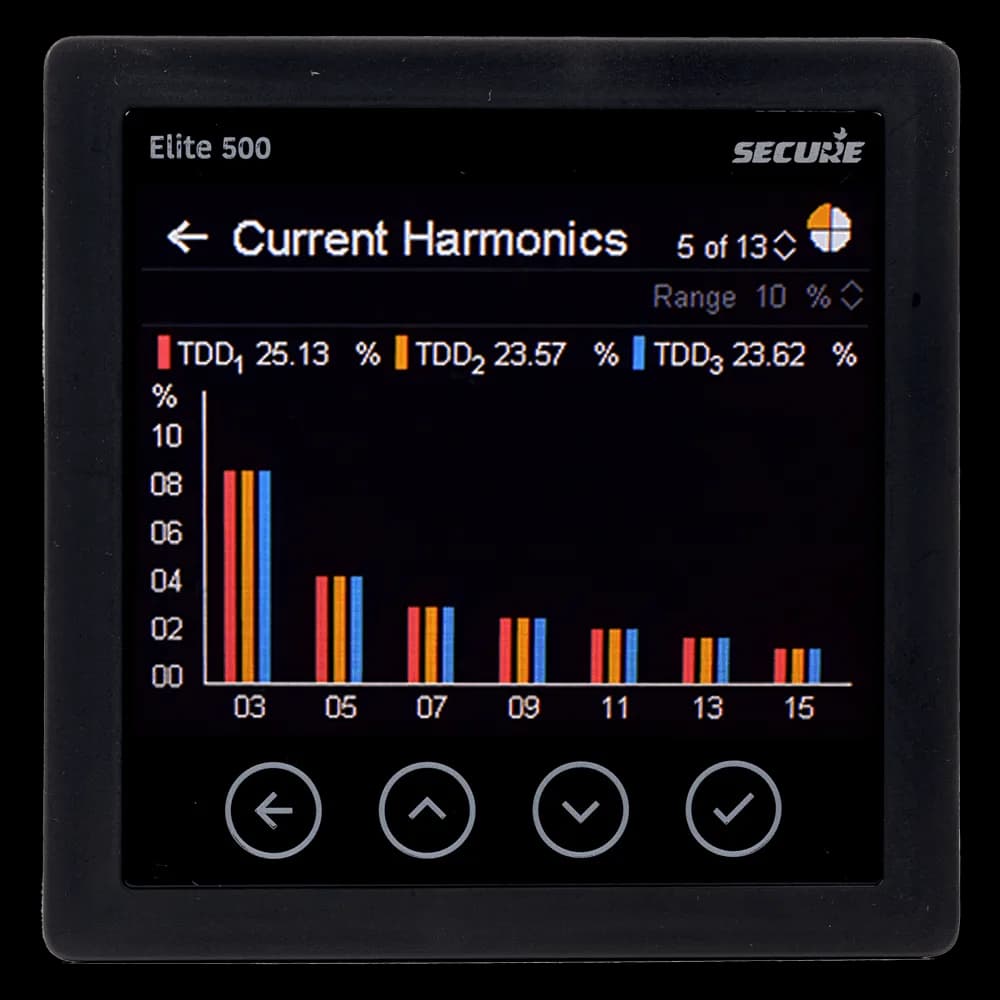

Power quality measurements, individual harmonics, Total Harmonic Distortion (THD), waveform quality indices, and sequence components provide detailed visibility into electrical system performance.
The choice of conventional CT or Rogowski coil inputs allows the meter to suit different measurement requirements, including retrofit applications.
The high-resolution graphical display provides vector diagrams, bar charts, and weekly or monthly energy consumption comparisons for clearer analysis.
Dual loggers, alarms, control IOs, and analogue outputs provide additional capabilities for continuous monitoring, control, and automation applications.
Elite 500 is suited for installations where electrical performance needs to be monitored continuously and communicated across multiple systems. From power plants, feeder monitoring, grid substations, and renewable installations to industrial premises, commercial buildings, and LV / MV / HV switchgear, it provides a reliable metering platform for energy transfer measurement, process automation, and online monitoring of energy exchange.
Newsroom
Elite 500 provides high-precision monitoring of electrical energy and power quality for applications such as energy transfer, reconciliation, automation and continuous system monitoring.
Yes. It supports both conventional CT and Rogowski coil inputs, which you can connect directly to the meter without an additional integrator.
Yes. Its modular communication options support Modbus, Profinet, BACnet and IEC 61850 for integration with systems such as SCADA, BMS and process controls.
It provides power quality measurements, individual harmonics, THD, waveform quality indices and sequence components for deeper visibility into electrical system performance.
Yes. Dual loggers, alarms, control IOs and analogue outputs support continuous monitoring, control and automation applications.
The high-resolution graphical display provides vector diagrams, bar charts and weekly or monthly energy consumption comparisons.
Yes. The choice between conventional CT and Rogowski coil inputs allows it to suit different measurement requirements, including retrofit installations.
It provides Class 0.2S / 0.5S active energy accuracy and 0.5S reactive measurement for high-precision monitoring.
It is suited to power plants, feeder monitoring, grid substations, renewable installations, industrial premises, commercial buildings, and LV, MV and HV switchgear.
Yes. Alongside power monitoring and data logging, its communication options, control IOs and analogue outputs support automation and integration with third-party systems.
